Domain-level modules
Table of Contents
Domain-level modules can declare and manage all units for a single domain.
The final goal of this module is to produce UI units that can be used in the Nest.js module and Next.js page.
The final goal of this module is to produce UI units that can be used in the Nest.js module and Next.js page.
Overview

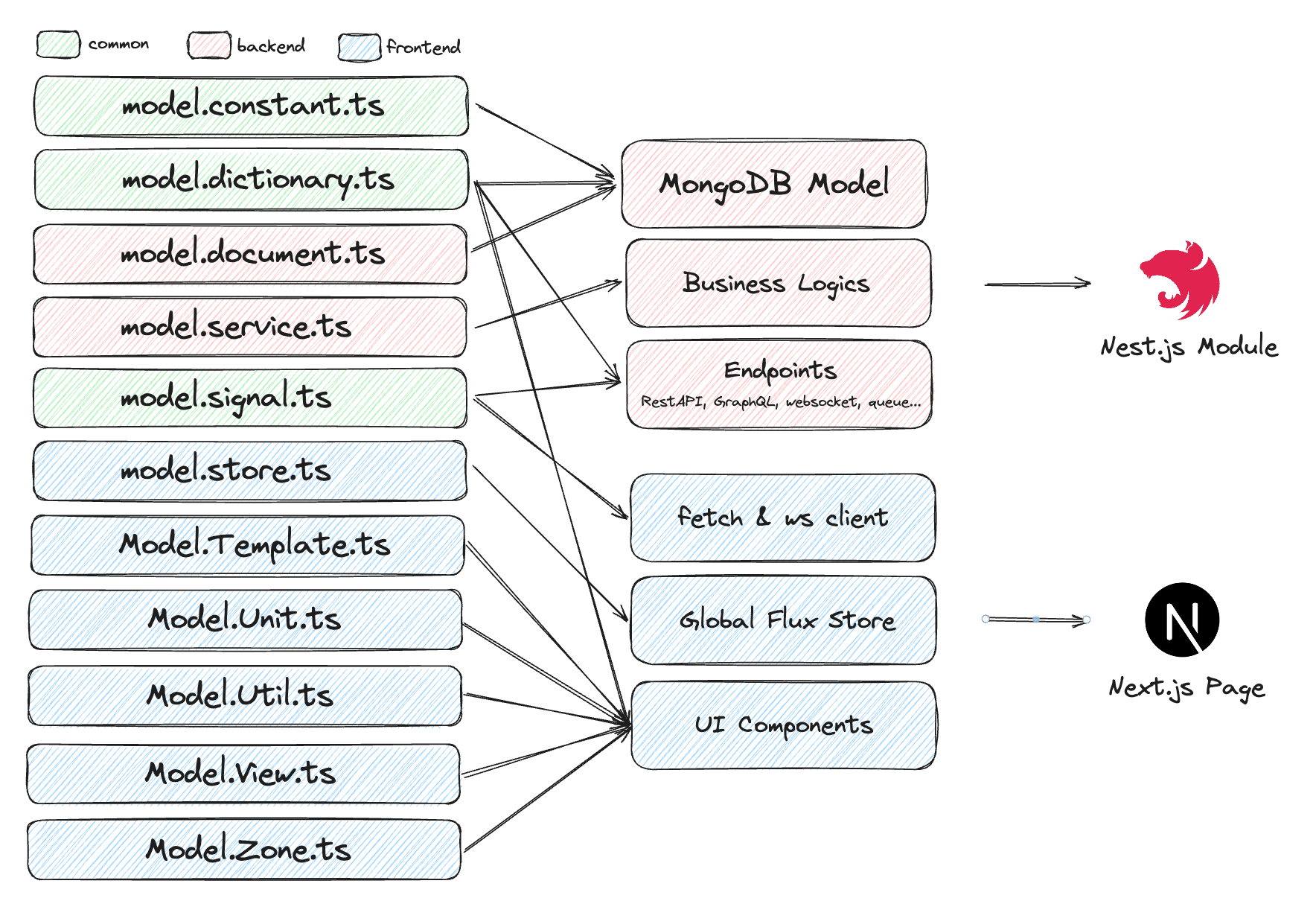

Domain-level modules are created by dividing the code into common files, backend files, and frontend files to remove duplicate code declarations during this process.
Common + Backend → MongoDB Model, Service Logic, Endpoint → Nest.js Module
Common + Frontend → fetch client, flux store, UI → Next.js Component
1. Common files
Common files are files that are used in both the backend and frontend.
| File | Description |
|---|---|
| constant | Defines the schema of data stored in the DB and the resolved form received through fetch. |
| dictionary | Defines the names, descriptions, API names, enums, error messages, etc. of the model and model fields in multiple languages. |
| signal | Defines the data shape that the backend opens and the data shape received by the frontend. |
Constraints
In common files, you cannot import or use dependent code or libraries on the backend/frontend, and you need to write code at the pure javascript level.
For example, you cannot call mongoose(backend), window(browser), etc., and you can only use the base/common library as an internal library.
However, type import is possible because it disappears during the transpilation process.
For example, you cannot call mongoose(backend), window(browser), etc., and you can only use the base/common library as an internal library.
However, type import is possible because it disappears during the transpilation process.
2. Backend files
Backend files are files that create a Nest.js module by creating MongoDB models, service-level business logic, and API endpoints.
| File | Description |
|---|---|
| document | constant 스키마 기반의 MongoDB Document/Modeland Redis cache, natural language search, etc. |
| service | Writes the business logic that is actually needed for the domain operation. |
3. Frontend files
Frontend files are files that define the client that fetches data from the endpoint, the basic state management system that supports CRUD, pagination, etc., and the domain-based UI components.
| File | Description |
|---|---|
| store | Defines the state and action related to the domain in the global single store. |
| Template | Defines the UI components needed to create/update the domain data. |
| Unit | Defines the UI components needed to display the domain data when multiple data is retrieved. |
| Util | Defines the UI components needed to create special functions related to the domain. |
| View | Defines the UI components needed to display the domain data when a single data is retrieved. |
| Zone | Combines existing components to create a container that can be used in actual pages. |
Frontend Component Summary
State Management
The store handles the domain state and business logic.
UI Component
Template, Unit, View provide reusable UI components.
Container
Zone combines components to create a complete page.
